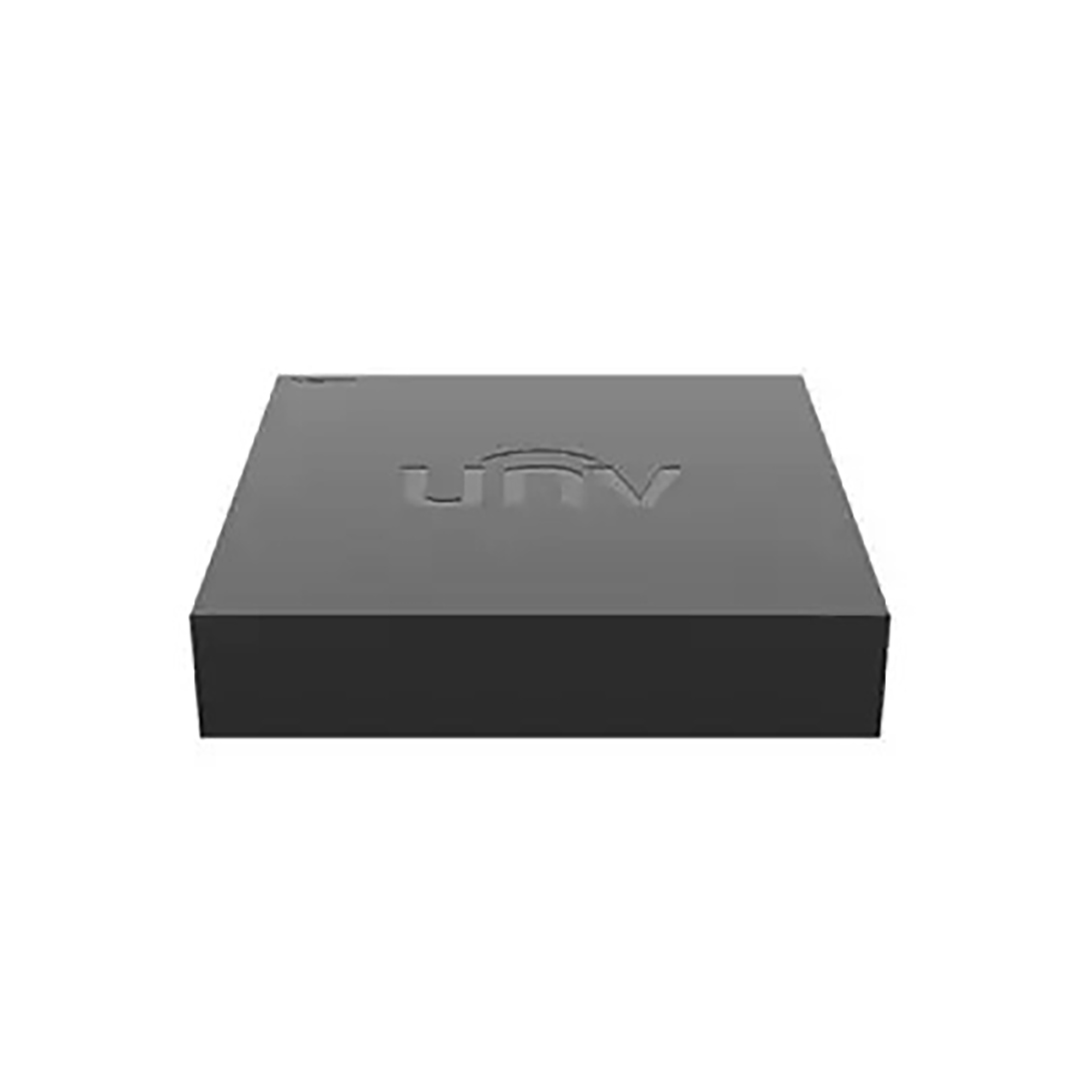

Uniview XVR301-08F 8-Channel 1 SATA XVR

ছাড়

~~৳4400~~ ৳4000

0.00/5 See Reviews

প্রোডাক্ট কোড : P0421

Brand : Uniview

- +

+8801844468450

এই পণ্যটি সম্পর্কে জিজ্ঞাসা করুন

ফেনীর ভিতরে ৭০ টাকা
ফেনীর বাহিরে ১২০ টাকা

Description
Reviews (0)

বিস্তারিত

Key Features of XVR301-08F:

Channel: 8-Channel

Storage: Up to 6TB for each HDD

Output Port: HDMI & VGA

Input Port: 1x RJ45, 2x USB2.0

Outgoing Bandwidth: 64Mbps

Specification:

Brand	Uniview
Model	XVR301-04F
Type	4-Channel 1 SATA XVR
SATA	1 SATA interface
Capacity	Up to 6TB for each HDD
Analog Video Input	8-ch, BNC
IP Video Input	2-ch(only IP up to 10ch), each channel up to 6MP
Supported Analog Camera Types	Support AHD input: 1080P@30fps 720P@30fps Support TVI input: 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input
Audio Compression	G.711U
VGA Output	1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output	1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Live view display	HDMI/VGA: 1/4/6/8/9/16
Synchronous Playback	HD:8-ch SD:8-ch
Recording Resolution	1080P Lite/720P/D1
Recording Frame Rate	Main stream: 1080P Lite@15fps \| 720P@15fps Sub stream: D1@12fps \| D1@15fps
Audio Sample Rate	8KHz,16 bit per channel
Audio Bit Rate	64Kbps per channel
Capability	Analog:8x 1080P Lite @15, 8x 720P @15 IP: 1 x 6MP@20, 2 x 1080P@30
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
Incoming Bandwidth	24Mbps (Up to 40Mbps after all-analog channel conversion)
Outgoing Bandwidth	64Mbps
Web Browser	IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows
Remote Users	128
General Alarm	Motion detection
Alert Alarm	IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel: 2 x USB2.0
Power	12V DC Power Consumption: ≤ 10 W( without HDD )
Working Environment	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions	190mm × 202mm × 42mm (7.5" × 7.9" × 1.6")
Weight	≤0.6 Kg ( 1.32lb )
Certification	UL/CE/FCC /RoHS /WEEE
Warranty Details	1-Year Brand Warranty

Description:

Uniview XVR301-08F 8-Channel 1 SATA XVR

Uniview XVR301-08F stands as a dependable 8-channel XVR system, crafted for efficient surveillance applications. Featuring a single SATA interface with a generous capacity of up to 6TB per HDD, this system ensures ample storage for your video recordings. With 8 analog video inputs via BNC connectors and support for 2 IP video inputs, each channel capable of handling up to 6MP, it provides comprehensive coverage for your security needs. Display options include VGA and HDMI outputs with resolutions such as 1920x1080p/60Hz, ensuring clear and detailed visuals. The recording resolution options include 1080P Lite, 720P, and D1, and the system maintains optimal video quality with frame rates like 1080P Lite at 15fps and 720P at 15fps for the main stream. The substream operates at D1 with frame rates of 12fps and 15fps.

With an audio sample rate of 8KHz and 16-bit per channel, coupled with an audio bit rate of 64Kbps per channel, it caters to sound recording needs effectively. The Uniview XVR301-08F offers a substantial outgoing bandwidth of 64Mbps, supporting smooth data transmission. Additionally, the system is equipped to accommodate 128 remote users and comes with a 1-year brand warranty, ensuring reliability and ease of use for your surveillance requirements.

Customer Reviews (0)

This product has no reviews yet.
Be the first one to write a review.
