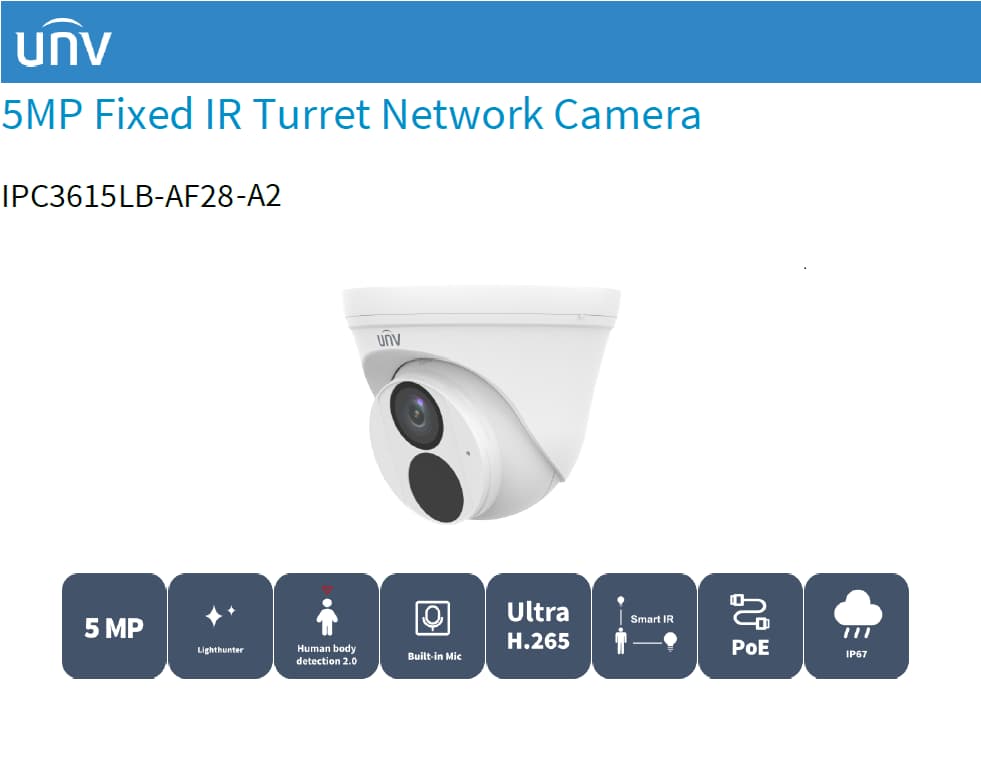

Uniview IPC3615LB-AF28-A2 5MP Fixed IR Turret Network Camera

৳0

0.00/5 See Reviews

প্রোডাক্ট কোড : P0476

Brand : UNV

- +

+8801844468450

এই পণ্যটি সম্পর্কে জিজ্ঞাসা করুন

ফেনীর ভিতরে ৭০ টাকা
ফেনীর বাহিরে ১২০ টাকা

Description
Reviews (0)

বিস্তারিত

• High quality image with 5MP, 1/3.0" CMOS sensor

• 5MP (2592*1944) @20fps; 4MP (2560*1440) @20fps; 3MP (2304*1296) @20fps; 2MP (1920*1080) @30/25fps

• Support accurate Human Body Detection 2.0

• Ultra H.265, H.265, H.264

• Built in Mic

• Smart IR, up to 30m (98ft) IR distance

• Day/night functionality

• 2D/3D DNR (Digital Noise Reduction)

• DC12V or PoE (IEEE 802.3af) power supply

• IP67 protection

• 3 Axis

Camera

Max Resolution: 5 MP

Sensor: 1/3.0" CMOS

Min. Illumination:

Colour:0.01 lux (F2.0, AGC ON)

0 lux with IR on

Day/Night: IR-cut filter with auto switch (ICR)

Shutter: Auto/Manual, 1 to 1/100000 s

Adjustment Angle: Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°

S/N: > 52 dB

WDR: DWDR

Lens

Focal Length: 2.8 mm

Iris Type: Fixed

Iris: F2.0

Field of View (H): 94.3°

Field of View (V): 52.2°

Field of View (D): 99.6°

Lens Type: Fixed

DORI

DORI Distance (Lens): 2.8 mm

DORI Distance (Detect): 63.0m (206.7 ft)

DORI Distance (Observe): 25.2m (82.7 ft)

DORI Distance (Recognize): 12.6m (41.3 ft)

DORI Distance (Identify): 6.3m (20.7 ft)

Illuminator

Supplemental Light: IR

Illumination Distance (IR): 30 m (98.4 ft)

Wavelength: 850 nm

IR On/Off Control: Auto/Manual

Video

Video Compression: Ultra 265, H.265, H.264

H.264 Code Profile: Baseline profile, Main profile, High profile

Frame Rate:

Main Stream: 5MP (2592*1944), Max 20fps; 4MP (2560*1440), Max 20fps; 3MP (2304*1296), Max 20fps; 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps

Sub Stream: 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps

Video Bit Rate: 128 Kbps to 6144 Kbps

U-code: Support

OSD: Up to 4 OSDs

Privacy Mask: Up to 4 areas

ROI: Support

Video Stream: Dual Streams


White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2, Area White Balance

Digital Noise Reduction: 2D/3D DNR

Smart IR: Support

Flip: Normal, Flip Vertical, Flip Horizontal, 180°

Dewarping: N/A

HLC: Support

BLC: Support

Defog: Digital Defog

Image Stabilization: N/A

Events

Basic Detection: Human Body Detection 2.0, Motion Detection, Audio Detection

General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication

Audio

Audio Compression: G.711U, G.711A

Audio Bitrate: 64 Kbps

Two-way Audio: N/A

Suppression: Support

Sampling Rate: 8 kHz

Storage

Edge Storage: N/A

Network

Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS

Compatible Integration:

ONVIF (Profile S, Profile T) ,

API, SDK

User/Host: Up to 32 users. 3 user levels: administrator, common user and operator

Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF

Client: UNV-Link, UNV-Link Pro, EZStation

Web Browser: Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+, Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Interface

Audio I/O: N/A

Alarm I/O: N/A

Serial Port: N/A

Built-in Mic: Support

Built-in Speaker: N/A

WIFI: N/A

Network: 1 × RJ45 10 M/100 M Base-TX Ethernet

Video Output: N/A

Certification

EMC:

CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)

FCC (FCC 47 CFR part15 B)

Safety:

CE LVD (EN 62368-1)

UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);

Protection: IP67 (IEC 60529)

General

Power: DC 12V±25%, PoE (IEEE 802.3af)

Power Consumption: Max 3.9 W

Power Interface: Ø5.5 mm coaxial power plug

Dimensions: Ø118 x 95mm (Ø4.6” x 3.8”) (Ø x H)

Weight: 0.25 kg (0.55 lb)

Material: Graphene + Plastic

Working Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)

Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)

Surge Protection: 4 KV

Reset Button: N/A

Web Client Language: 4 Languages: English, Russian, Spanish, Vietnamese
