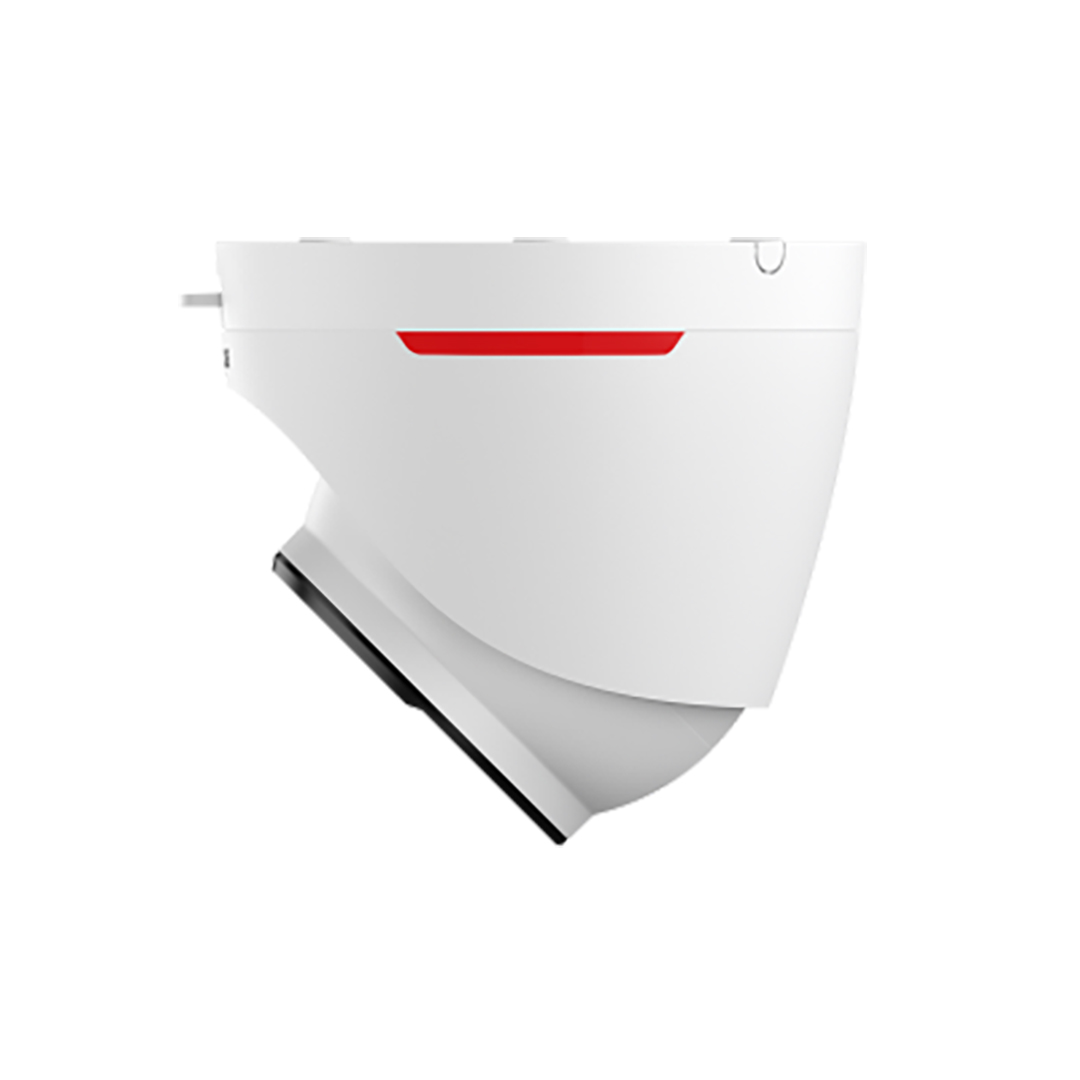

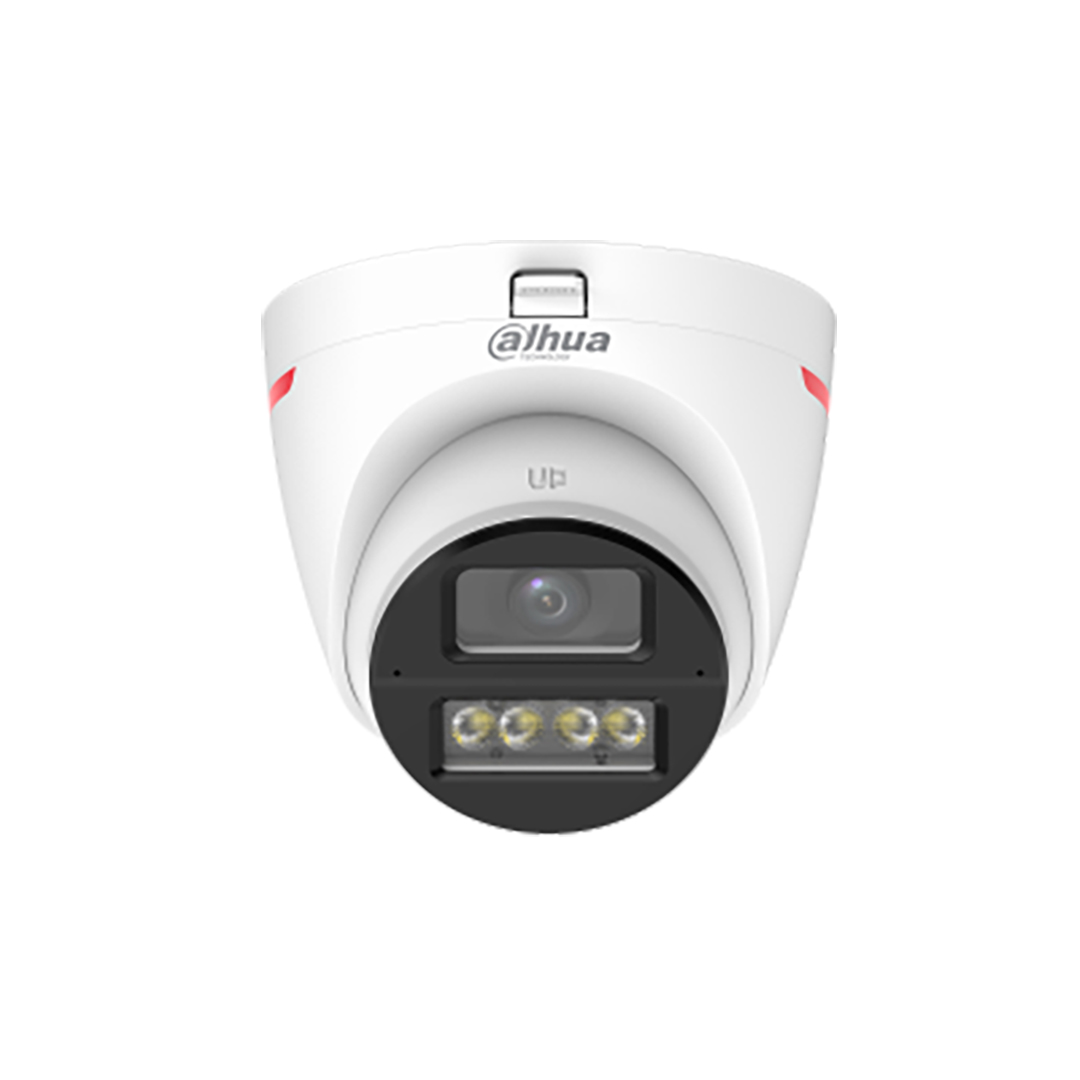

DAHUA DH-HAC-HDW1549XP-A-PRO 5MP WIZ COLOR HDCVI DOME CAMERA 50 MTR IR LED DISTANCE, LENS 2.8 MM BUILT IN MIC (METAL+PLASTIC)

৳6090 ৳5800

0.00/5 See Reviews

প্রোডাক্ট কোড : P0860

Brand : N/A

- +
ফেনীর ভিতরে ৭০ টাকা
ফেনীর বাহিরে ১২০ টাকা

বিস্তারিত

Key Points

    High-Quality Imaging with 5MP 16:9 Resolution

    Full-color: 24/7 color monitoring collects highly detailed information

    WizColor Technology: Exceptional Image Quality in Low-Light Conditions

    Built-In Dual Mic : Enhances Video Assistance with Dual Mic Technology

    Smart Light+ : Clear Details with Advanced LED Processing Technolog


Image Sensor5 MP CMOS
Max. Resolution2880 (H) × 1620 (V)
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
Min. Illumination0.0001 lux@F1.0 (Color, 30 IRE)
0 lux (Illuminator on)
S/N Ratio>65 dB
Illumination DistanceWarm light: 50 m (164.04 ft)
Illuminator On/Off ControlAuto/Manual
Illuminator Number4 (Warm light)
Angle AdjustmentPan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens TypeFixed-focal
Lens MountM12
Focal Length2.8 mm; 3.6 mm
Max. ApertureF1.0
Field of View2.8 mm: H: 109.6°; V: 57.5°; D: 131°
3.6 mm: H: 88.2°; V: 47.6°; D: 104.5°
Iris ControlFixed
Close Focus Distance2.8 mm: 2.0 m (6.56 ft)
3.6 mm: 3.0 m (9.84 ft)
DORI Distance
LensDetectObserveRecognizeIdentify
2.8 mm66.0 m
( 216.65 ft)
26.4 m
( 86.61 ft)
13.2 m
( 43.31 ft)
6.6 m

( 21.65 ft)
3.6 mm78.0 m
( 255.91 ft)
31.2 m
( 102.36 ft)
15.6 m
( 51.18 ft)
7.8 m

( 25.59 ft)
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Video

Video Frame RateCVI:
PAL: 5M@25 fps; 5M@12.5 fps;
NTSC: 5M@25 fps; 5M@10 fps;
AHD:
PAL: 4M@25 fps
NTSC: 4M@30 fps
TVI:
PAL: 5M@20 fps
NTSC: 5M@20 fps
CVBS:
PAL: 960H
NTSC: 960H
Resolution5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665)
Day/NightColor
WDR130 dB
White BalanceAuto
Gain ControlAuto
Noise Reduction3D NR
Motion DetectionYes (It needs to be controlled through the XVR)
Illumination ModeSmart Light
MirrorYes (It needs to be controlled through the XVR)

Certification

CertificationsCE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;

Audio

Built-in MicYes, built-in dual Mic
Camera AudioCVI
Pick-up Distance12 m (39.37 ft)

Port

Video OutputVideo output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

Power

Power Supply12 VDC (±30%)
Power ConsumptionMax 5.8 W (12 VDC, LED on)

Environment

Operating Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity<95% (RH), non-condensing
Storage Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity<95% (RH), non-condensing
ProtectionIP67
Anti-corrosion LevelBasic Protection
*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.

Structure

Casing MaterialDome (metal + plastic) + plastic enclosure
Product DimensionsΦ109.9 mm × 102.2 mm (Φ4.33" × 4.02")
Net Weight0.33 kg (0.73 lb)
Gross Weight0.45 kg (0.99 lb)
InstallationWall mount; ceiling mount; vertical pole mount
