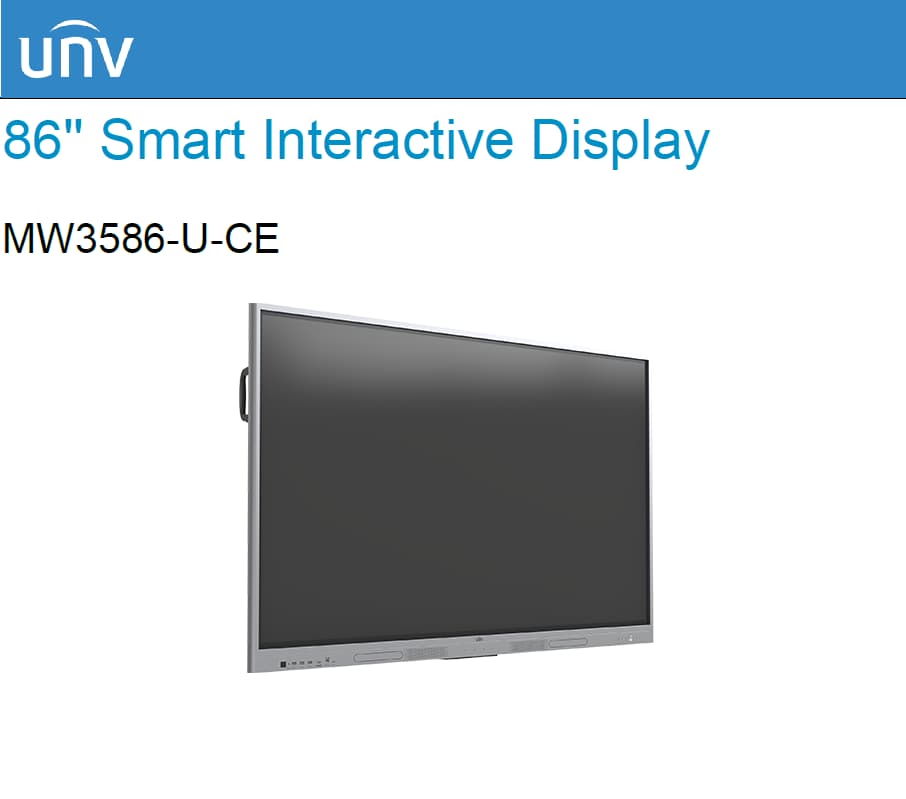

UNV MW3586-U-CE 86-Inch SMART INTERACTIVE DISPLAY

৳0

0.00/5 See Reviews

প্রোডাক্ট কোড : P0488

Brand : UNV

- +

+8801844468450

এই পণ্যটি সম্পর্কে জিজ্ঞাসা করুন

ফেনীর ভিতরে ৭০ টাকা
ফেনীর বাহিরে ১৫০ টাকা

Description
Reviews (0)

বিস্তারিত

Features

• 4K UHD anti-glare display delivers images with extreme detail.
• Ultra-narrow bezel design for perfect aesthetics.
• Dual Wi-Fi modules with both Wi-Fi and hotspot support for other mobile devices.
• High-precision infrared touch technology allows up to 50-point touch and 20-point write, realizing smooth co-authoring.
• Multiple utility buttons on the front panel such as power, volume control, settings, etc.
• A variety of quick tools such as annotation, screenshot, etc., with a floating window, improves usability and interaction efficiency.
• Wireless screen mirroring from various operating systems such as Android, iOS, and Windows to the display with one touch.
• Fast file transfer allows users to quickly transfer files to the display via a QR code.
• OTA remote upgrade allows the system to be upgraded online without backing up data.
• Optional 4K camera and microphone modules for immersive remote collaboration.
• A variety of front interfaces allow users to easily and quickly plug/unplug USB drives and other tools.
• OCR recognition. The whiteboard can automatically recognize text

Panel

Backlight: DLED

Panel Size: 86"

Resolution: 3840 x 2160

Brightness (cd/m²): 350

Contrast Ratio: 1200 : 1

Response Time (ms): 8

Viewing Angle (H/V): 178°/178°

Color Support: 1.07 billion

Refresh rate（Hz): 60

Color gamut: 72%

Lifespan: 50000H

Haze Value: 25%

Surface Hardness: 9H (7 on the Mohs scale)

Display Size（mm): 1895.04 x 1065.96

Pixel Pitch (H x V) (mm): 0.4935 x 0.4935

Touch

Touch Control: Contactless IR sensor, supports 50-point touch, 20-point write

Touch Precision (mm): ±1

Recognizable Object: 10 points, 2mm

Glass: 4mm tempered glass, 7H (Mohs), anti-glare

Touch Response Time (ms): ≤2

Touchscreen Input: Opaque objects (e.g. fingers, pens)

Touch technology: Infrared touch

System

CPU Frequency: 2.4GHz

CPU: RK3588: 4 x Cortex-A76 based 2.4 GHz + 4 x Cortex-A55 based 1.8 GHz

RAM/ROM: DDR4: 8GB, eMMC: 128GB

Android Version: Android 13.0

Interface

Video Input: 3 x HDMI IN (4K), 1 x DP IN, 1 x VGA IN, 1 x YPbPr IN

Video Output: 1 x DP OUT, 1 x HDMI OUT (4K)

Audio Input: 1 x AUDIO IN

Audio Output: 1 x EARPHONE, 1 x coaxial audio output interface (COAX)

Other Interfaces: 1 x RS232, 3 x front USB 3.0, 4 x on-board USB 3.0, 2 x TOUCH USB, 2 x Type-C, 1 x TF CARD, 1 x IR IN

Network: 1 x LAN OUT, 1 x LAN IN

Audio

Speaker:

Left channel 20W: 1 x treble (5W) + 1 x bass (15W)

Right channel 20W: 1 x treble (5W) + 1 x bass (15W)

Wi-Fi

Wi-Fi Configuration: Wi-Fi 5+Wi-Fi 6, supports 5 GHz/2.4 GHz

Wi-Fi Performance: 30m² coverage, 20m transmission distance in open space

Bluetooth

Bluetooth Version: 5.2

Bluetooth Performance: 10m transmission distance in open space

OSD

Multi-Language: 26 (Simplified Chinese, Traditional Chinese, English, Japanese, Arabic, French, Spanish(ES-ES), Spanish(ES-MX), Portuguese(ES-ES), Portuguese(ES-MX), Portuguese, German, Italian, Dutch, Polish, Korean, Catalan, Galician, Vietnamese, Bulgarian, Kazakh, Russian, Ukrainian, Thai, Uzbek, Hungarian, Croatian)

VESA

Wall Mount Hole (mm): 800 x 400

Wall Mount Screw: 4 x M8 screw hole

General

Power Supply: AC 100 to 240 V, 50/60 Hz

Overall Power Consumption (W): 360 (without OPS)

Standby Power Consumption (W): < 0.5

Product Dimensions (W x H x D) (mm): 1967 x 1173 x 89

Package Dimensions (W x H x D) (mm): 2119 x 1339 x 259

Operating Temperature: 0°C to 50°C

Weight (Kg):

Net weight: 68

Gross weight: 82

Operating Humidity: 10% to 90% RH (noncondensing)

Storage Temperature: -20°C to 60°C

Storage Humidity: 0% to 95% RH (noncondensing)

Accessories Included: 1 x power cable, 2 x stylus pen, 1 x quick guide, 1 x wall mounting bracket, 1 x IR remote control

Certification

Certification: Energy Star, CE LVD, CB, ERP, CE EMC, FCC, RCM, EAC
