Save: 420৳ (-16%)

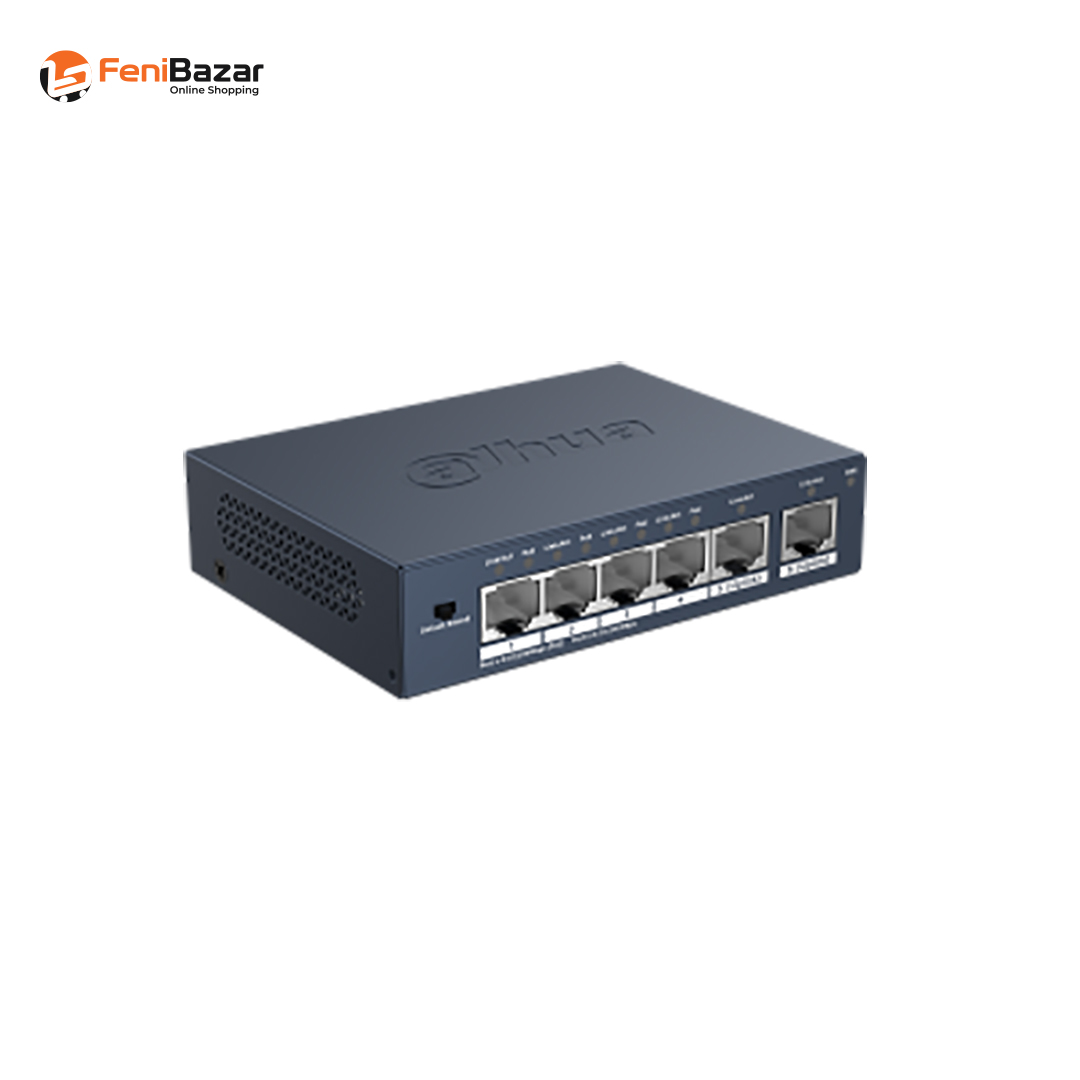

DH-S3006-4ET-36 6-Port Unmanaged Desktop Switch with 4-Port PoE

৳2670 ৳2250

0.00/5 See Reviews

প্রোডাক্ট কোড : P0889

Brand : Dahua

- +
ফেনীর ভিতরে ৭০ টাকা
ফেনীর বাহিরে ১৫০ টাকা

বিস্তারিত

6-Port Unmanaged Desktop Switch with 4-Port PoE

> Easy to install, and is plug and play.

> Meets the requirements of IEEE802.3af and IEEE802.3at standards.

> Performs long-distance transmission.

> With its solid full metal design, the device has great heat dissipation and no fan.

> Wide operating temperature ranging from –10 °C to +55 °C.

> Supports wall mount and desktop mount.


Basic

Layer

Unmanaged

Switching Capacity

1.2 Gbps

Packet Forwarding Rate

0.893 Mpps

Description of Function Slots

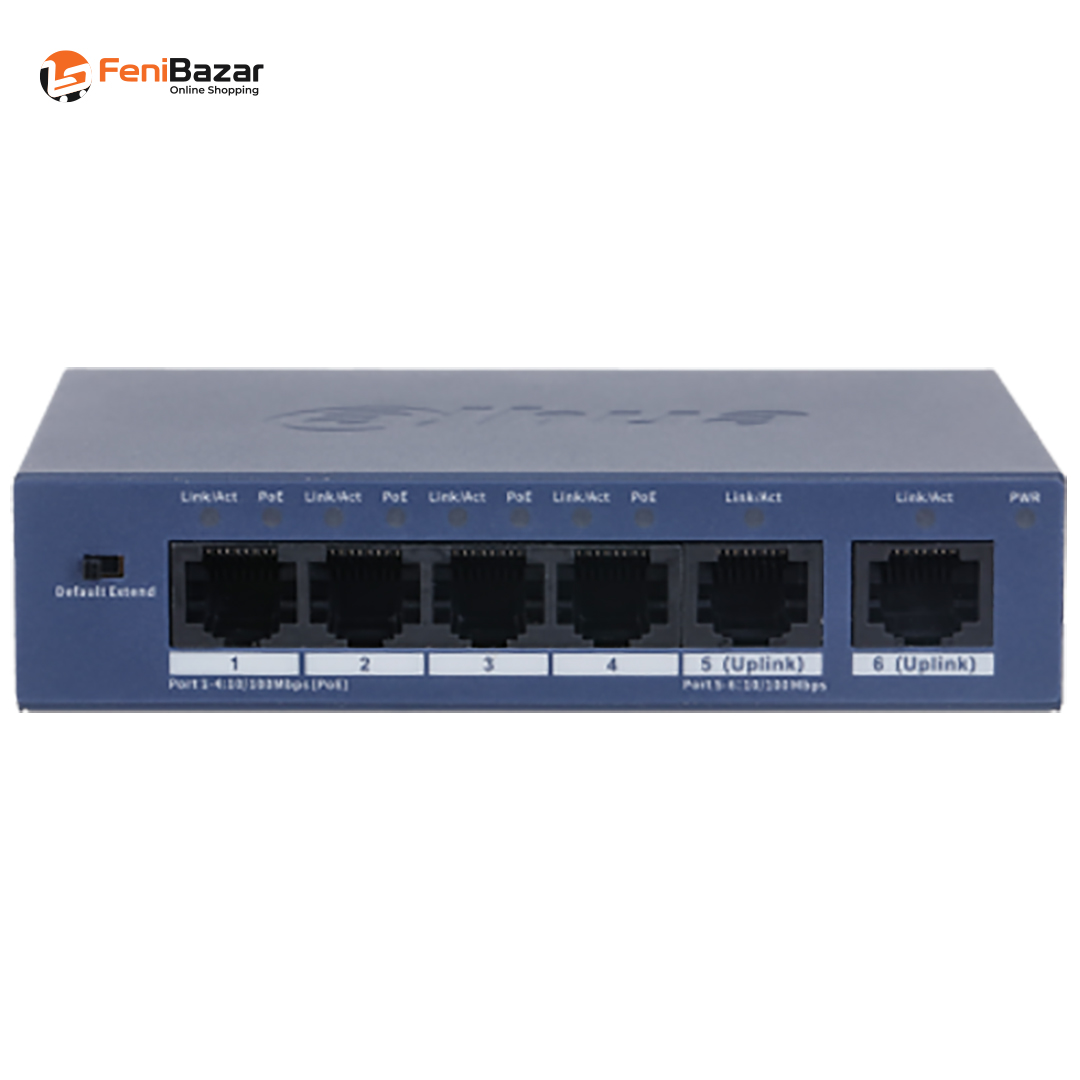

Port 1-4: 4 × RJ-45 10/100 Mbps (PoE)
Port 5-6: 2 × RJ-45 10/100 Mbps (Uplink)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90% (RH), non-condensing

Storage Temperature

–40 °C to +75 °C (–40 °F to +167 °F)

Storage Humidity

5%–95% (RH), non-condensing

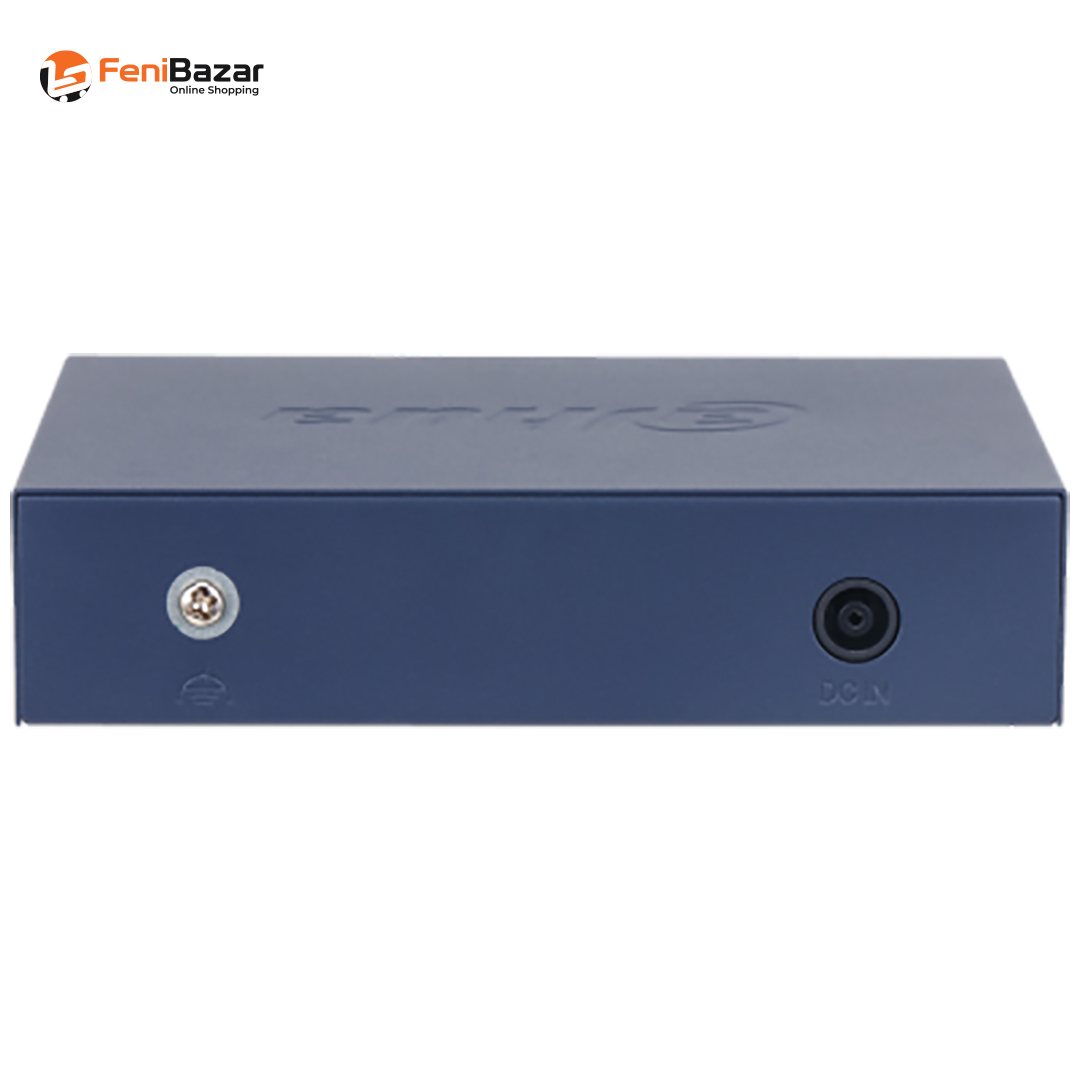

Power Supply

External power supply: 53 V, 50/60 Hz, max 0.8 A

Power Consumption

Idling: 1.3 W
Full load: 38.3 W

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lightning Protection

Common mode: 6 kV
Differential mode: 1 kV

Net Weight

0.19 kg (0.42 lb)

Gross Weight

0.635 kg (1.40 lb)

Product Dimensions

115.5 mm × 84.3 mm × 27 mm (4.55" × 3.32" × 1.06") (L × W × H)

Packaging Dimensions

196 mm × 115 mm × 85 mm (7.72" × 4.53" × 3.35") (L × W × H)

Casing Material

Sheet Metal

Installation

Desktop mount; wall mount

Certifications

CE

PoE

PoE

Yes

PoE Power

Port 1-4≤30 W, total≤36 W

PoE Protocol

IEEE 802.3af; IEEE 802.3at

PoE Pin Assignment

1,2,4,5 (V+),3,6,7,8 (V-)

Long Distance PoE Transmission

Yes

Hardware

DIP Switch

Long Distance PoE: The transmission distance of ports 1–4 can reach up to 250 meters. The negotiation speed can be reduced to 10 Mbps.

Performance

Packet Buffer Size

768 Kbit

Jumbo Frame

2048 Byte

MAC Table Size

2K

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3x

General

Packing List

1 × User Manual
1 × Legal and Regulatory Information
1 × Power Cord
1 × Power Adapter
